Docs are available here: https://www.transitchicago.com/developers/ttdocs/
API consists of two main queries
- 'Arrivals' - which lets you query all arrivals for a station available at https://lapi.transitchicago.com/api/1.0/ttarrivals.aspx
- 'Locations' - Which lets you query all stations along a line, and returns the location of all trains. Available at https://lapi.transitchicago.com/api/1.0/ttpositions.aspx
The API is fairly simple and robust, there's no need for tokens or 2FA or oauth, a simple custom string will provide the data needed:
- The API in this instance is simply a HTTPS query with some parameters, you can see this by pasting the following into a browser:

    To query XML: https://lapi.transitchicago.com/api/1.0/ttarrivals.aspx?key=<KEYID>&mapid=<mapID>
    To query JSON: https://lapi.transitchicago.com/api/1.0/ttarrivals.aspx?key=<KEYID>&mapid=40380&outputType=JSON

    Simple HTTP queries use the '?' to define start of parameters, and each parameter is seperated by an '&'
    In the above, we are querying the 'ttarrivals' endpoint, used for the Arrivals API
    KEYID is your API key
    MAPID is the ID of a station on the CTA, such as "40380". These station numbers are available on the ttdocs website.

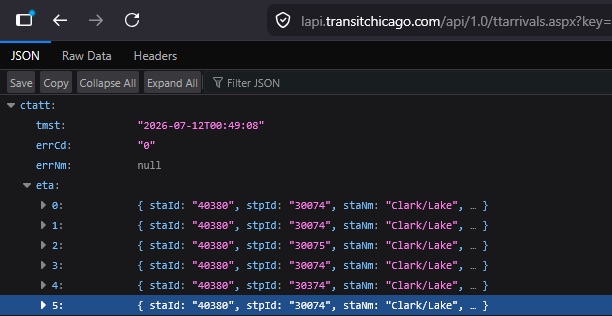

The below is an example returned of the JSON station for mapid 40380, station Clarke/Lake

The Arrivals API returns all the future trains to arrive at a station.
JSON is typically an easier format to work with than XML, both are essentially ways to structure data that are nicely readable by applications (a tree structure).
In the above example, we have an array of next arrivals, starting at the top of the tree, we can pick each like you would in a folder. Some pseudocode (i.e. made up simplified language):
- Say return json is output.json = https://lapi.transitchicago.com/api/1.0/ttarrivals.aspx?key=<KEYID>&mapid=40380&outputType=JSON
- output->ctatt gives us tmst, errCd, errNm and eta 'folders'
- output->ctatt->eta gives us a list of folders for all the next upcoming trains.
- output->ctatt->eta->0 gives us the next train.
- output->ctatt->eta->1 gives us the second to next train.
- output->ctatt->eta->0-arrT gives us the time the next train will arrive in an ISO date format, i.e. "2026-07-12T00:50:16"
The problem with the Arrivals API, is you then need to query every station one by one, save the next arrival time of a train and then do something with the result (say, turn on an LED if it's less than 2 minutes away).
- That's a lot of queries to check for the entire network. Especially for a little ESP32.
- Very wasteful and abusive of the API for just your usage.
Enter the Locations API. Rather than query a station, we can query the entire line and get a list of trains on it.

    To query JSON: https://lapi.transitchicago.com/api/1.0/ttpositions.aspx?key=<KEYID>&rt=<route>&outputType=JSON

    KEYID is your API key
    RT is the identifier of the line, e.g. 'Blue'. These are in the appendix on the ttdocs website.

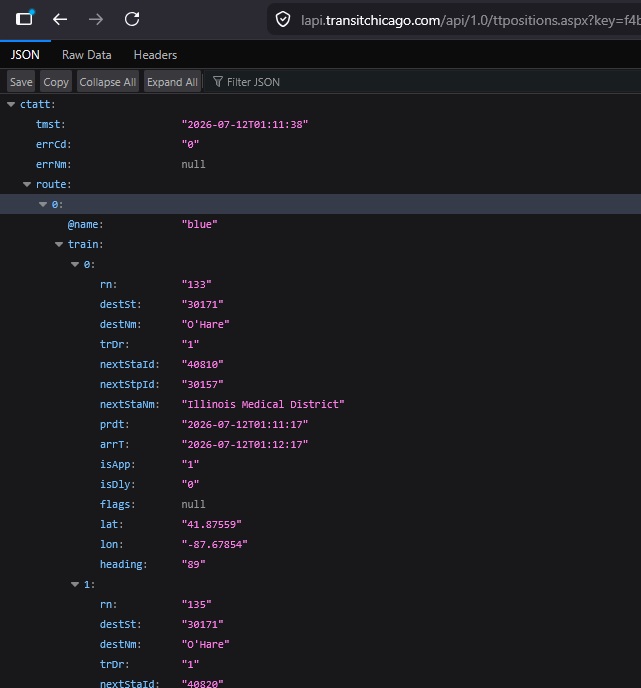

The below is an example returned of the JSON station for Blue route

The Locations API install returns all trains along a route.
In the above example, we have an array of all trains, starting at the top of the tree, we can pick each like you would in a folder. Some pseudocode:
- Say return json is output.json which = https://lapi.transitchicago.com/api/1.0/ttpositions.aspx?key=&rt=Blue&outputType=JSON
- output->tmst gives us the time we made this query, this is handy to find the current time.
- output->ctatt->route->0 gives us all the trains on the first route (which is Blue, as that's what we asked for)
- output->ctatt->route->0->train gives us a list of folders for all the active trains.
- output->ctatt->route->0->train->0 gives us the first train.
- output->ctatt->route->0->train->1 gives us the second train.
- output->ctatt->route->0->train->0->nextStaNm gives us the name of it's next station.
- output->ctatt->route->0->train->0->nextStaId gives us the ID of it's next station.
- output->ctatt->route->0->train->0->arrT gives us the time to the next station in ISO format. "2026-07-12T00:50:16"
So now, in a single query, we have all the information we need to know how far away "a train" is from any station on a line.
- A single query tells us everything we need to know to light up a line.

So example pseudocode:

# Create a simple 2D array of all stations (imagine table with two columns) and when the next train arrives. Let's set arrival time to 999 for now (i.e. not any time soon).
# We can use the station number instead of the name to keep code simpler (don't have to deal with spaces or symbols)
stations_eta = <array>
stations_eta[40380] = 999
stations_eta[40390] = 999
.... etc ....

# Get route data in JSON format
output_json = http_query(https://lapi.transitchicago.com/api/1.0/ttpositions.aspx?key=<KEYID>&rt=Blue&outputType=JSON)

# Get that into a useful array format instead of just a blob
output = json(output_json)

# We need the time this query was generated to be used for math later. Fortunately the API response stores this
time_now = output->tmst

# Now we can loop through all the trains and match up to the stations
for train in output->ctatt->route->0->train:
   # 'train' will now refer to the first train in the folder, aka 0.
   # So we can save the next stop of the train
   next_stop = train->nextStaId
   # The time of the next stop
   time_to_stop = train->arrT
   # Get the time difference.
   time_eta = time_to_stop - time_now
   # In our made up language, this is going to be in seconds.
   time_eta_mins = time_eta / 60

   # Now we can update the station array from earlier
   stations_eta[next_stop] = time_eta_mins

   # The loop will now run again, but next time it will refer to the second train (aka 1)

# We now have an array of all stations and the next train to arrive at them. For the ones with none any time soon, they'll still be 999 minutes away.
print(stations_eta[40380])
---> 6

print(stations_eta[40390])
---> 11

ESP32 Implementation

Micropython appears to still be poorly documented for ESP32s (especially the aliexpress clone boards).
Recommendation is to use either the Arduino IDE (for quickly getting going) or using PlatformIO with VS Code.
- Both of these are just fancy wrappers around C++ language, so plenty of documentation to google.
- The latter is harder to initially get going (mostly cause of VS Code), but it's a much nicer environment to code in than Arduino IDE.
- PlatformIO is completely compatable with Arduino code, so can always start in Arduino IDE and move from there.
Example Arduino IDE code for the API is available in example/src/
